Description

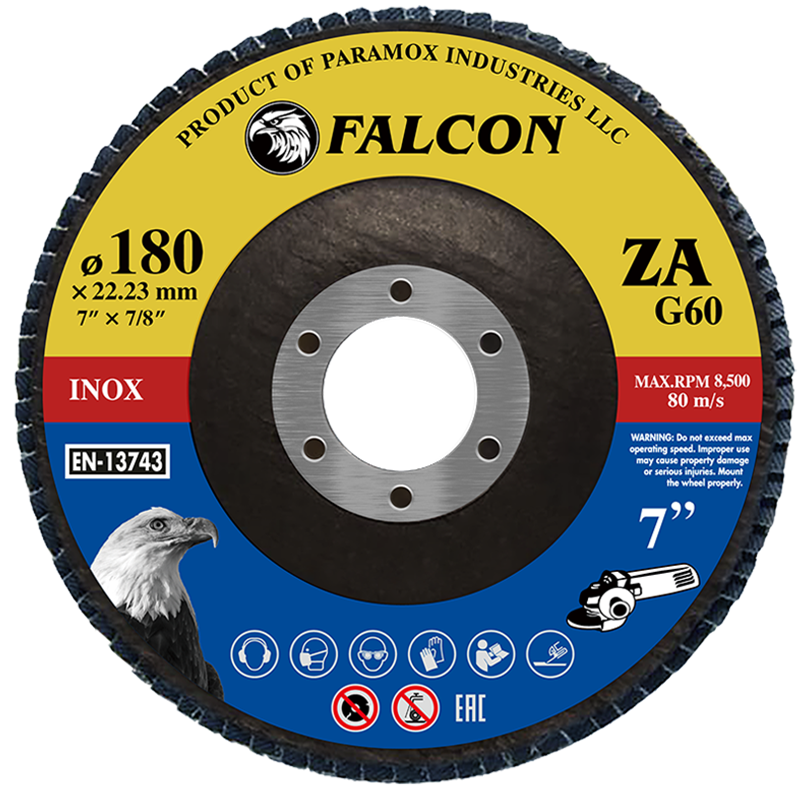

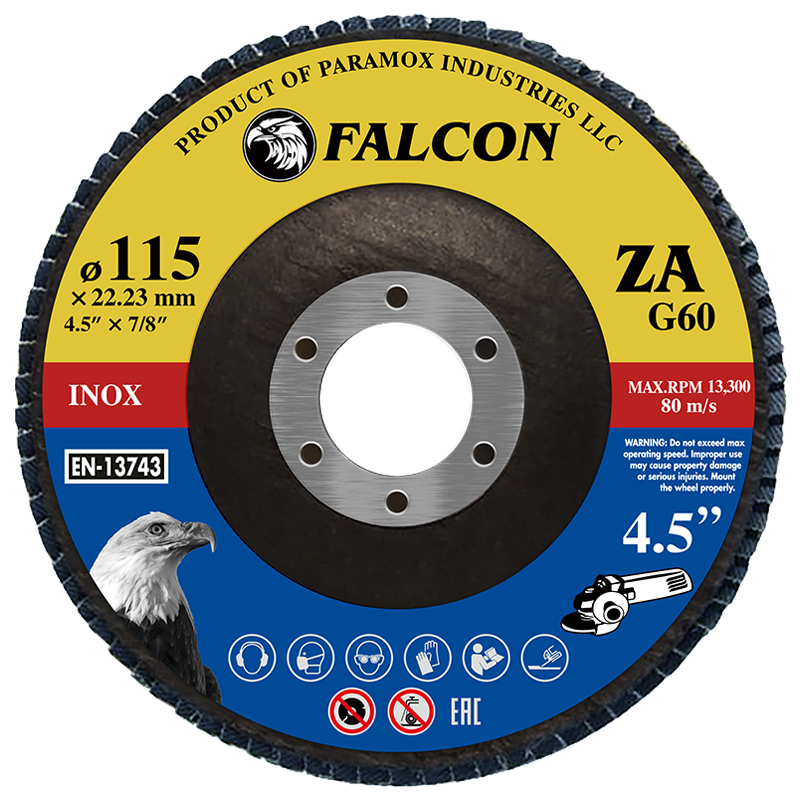

The industrial-grade flap disc with ZA material is a high-performance composite abrasive tool that combines the advantages of ZR (Zirconia Alumina) and AO (Alumina Oxide) materials. The disc adopts high-quality ZA composite abrasive cloth flaps, which integrate the sharpness and wear resistance of AO material with the heat resistance and toughness of ZR material. Through advanced composite technology and high-pressure bonding process, the flaps are evenly arranged and firmly fixed on a high-strength backing plate, ensuring balanced rotation and stable operation. The ZA flap disc is designed to adapt to various complex grinding scenarios, achieving both high efficiency and high quality, and is widely recognized in industrial processing fields.
Specifications
| Type | DimensionDTA(inch) | DimensionDTA(mm) | Grit | BOX | ||
| ZA | Pro Flap Discs,Zirconia Alumina | 29 | 4 1/2 x 7/8 | 115×22.23 | 40 | 10 |
| 29 | 4 1/2 x 7/8 | 115×22.23 | 60 | 10 | ||
| 29 | 4 1/2 x 7/8 | 115×22.23 | 80 | 10 | ||
| 29 | 5 x 7/8 | 125×22.23 | 40 | 10 | ||
| 29 | 5 x 7/8 | 125×22.23 | 60 | 10 | ||
| 29 | 5 x 7/8 | 125×22.23 | 80 | 10 | ||
| 29 | 7 x 7/8 | 180×22.23 | 40 | 10 | ||
| 29 | 7 x 7/8 | 180×22.23 | 60 | 10 | ||
| 29 | 7 x 7/8 | 180×22.23 | 80 | 10 | ||
| 27 | 4 1/2 x 7/8 | 115×22.23 | 40 | 10 | ||
| 27 | 4 1/2 x 7/8 | 115×22.23 | 60 | 10 | ||
| 27 | 4 1/2 x 7/8 | 115×22.23 | 80 | 10 | ||
| 27 | 5 x 7/8 | 125×22.23 | 40 | 10 | ||
| 27 | 5 x 7/8 | 125×22.23 | 60 | 10 | ||
| 27 | 5 x 7/8 | 125×22.23 | 80 | 10 | ||
| 27 | 7 x 7/8 | 180×22.23 | 40 | 10 | ||
| 27 | 7 x 7/8 | 180×22.23 | 60 | 10 | ||
| 27 | 7 x 7/8 | 180×22.23 | 80 | 10 | ||
| Pro HD Flap Discs, Zirconia Alumina | 29 | 4 1/2 x 7/8 | 115×22.23 | 40 | 10 | |
| 29 | 4 1/2 x 7/8 | 115×22.23 | 60 | 10 | ||
| 29 | 4 1/2 x 7/8 | 115×22.23 | 80 | 10 | ||
| Quality Flap Discs,Zirconia Alumina | 29 | 4 1/2 x 7/8 | 115×22.23 | 40 | 10 | |
| 29 | 4 1/2 x 7/8 | 115×22.23 | 60 | 10 | ||
| 29 | 4 1/2 x 7/8 | 115×22.23 | 80 | 10 | ||
| 29 | 5 x 7/8 | 125×22.23 | 40 | 10 | ||
| 29 | 5 x 7/8 | 125×22.23 | 60 | 10 | ||
| 29 | 5 x 7/8 | 125×22.23 | 80 | 10 | ||
| 29 | 7 x 7/8 | 180×22.23 | 40 | 10 | ||
| 29 | 7 x 7/8 | 180×22.23 | 60 | 10 | ||
| 29 | 7 x 7/8 | 180×22.23 | 80 | 10 | ||
| 27 | 4 1/2 x 7/8 | 115×22.23 | 40 | 10 | ||
| 27 | 4 1/2 x 7/8 | 115×22.23 | 60 | 10 | ||
| 27 | 4 1/2 x 7/8 | 115×22.23 | 80 | 10 | ||
| 27 | 5 x 7/8 | 125×22.23 | 40 | 10 | ||
| 27 | 5 x 7/8 | 125×22.23 | 60 | 10 | ||
| 27 | 5 x 7/8 | 125×22.23 | 80 | 10 | ||
| 27 | 7 x 7/8 | 180×22.23 | 40 | 10 | ||
| 27 | 7 x 7/8 | 180×22.23 | 60 | 10 | ||
| 27 | 7 x 7/8 | 180×22.23 | 80 | 10 |
Application
This ZA material flap disc has strong versatility, suitable for both general grinding and medium-heavy duty grinding scenarios, widely used in metal processing, machinery manufacturing, construction and other industries, including but not limited to:
- Grinding, deburring and edge trimming of stainless steel, carbon steel, alloy steel and non-ferrous metals (aluminum, copper, etc.);
- Semi-finish and finish grinding of mechanical parts, hardware products, auto parts and motorcycle parts;
- Welding seam grinding, blending and slag removal for metal structural parts, pipelines and equipment;
- Medium-load continuous grinding in hardware factories, auto repair shops and machinery maintenance sites;
- Surface refurbishment and rust removal of metal workpieces, ensuring a smooth and clean surface."
Advantage
Composite Advantage: Integrates the sharpness of AO material and the heat resistance, toughness of ZR material, suitable for more complex grinding scenarios than single-material flap discs.
High Efficiency & Long Service Life: Fast material removal rate, excellent wear resistance, and the service life is longer than ordinary AO flap discs, reducing the frequency of replacement and processing costs.
Good Heat Dissipation & Stability: The composite abrasive and flap structure ensure effective heat dissipation, avoiding workpiece damage caused by overheating, and stable operation during high-speed rotation.
Strong Versatility: Suitable for various metal materials, from general carbon steel to high-hardness stainless steel, meeting diverse grinding needs of industrial production.
Excellent Grinding Finish: The composite abrasive grains can achieve uniform and smooth grinding effect, reducing the need for subsequent polishing processes and improving production efficiency.
